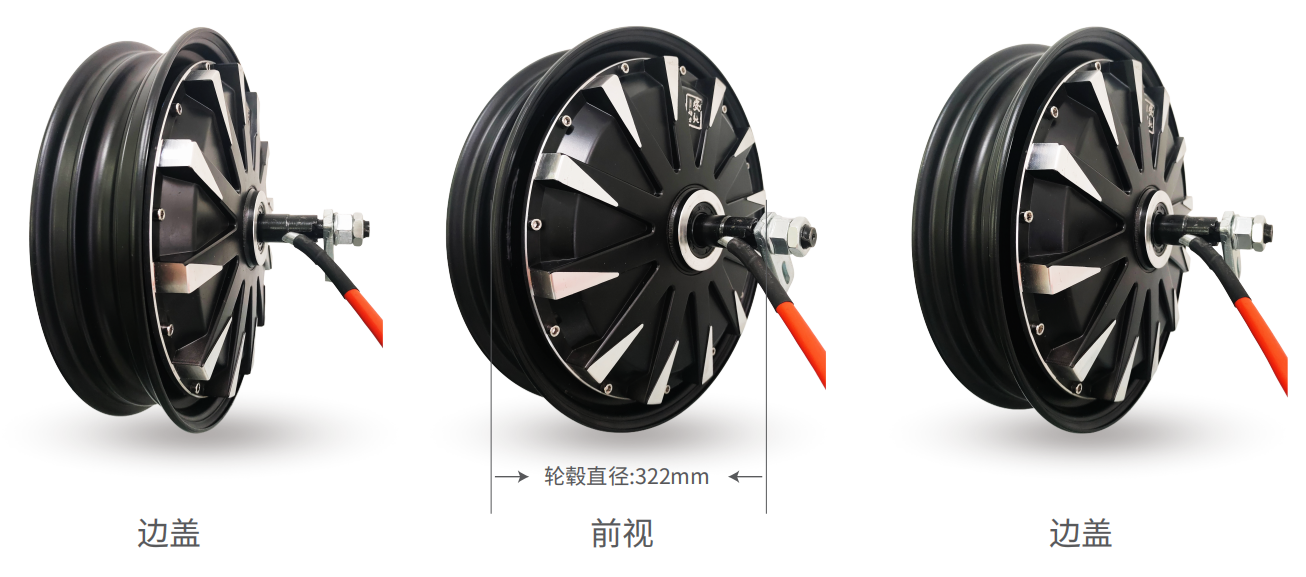

Product name: 12 inch - 3.0-260 electric disc brake

You have the customized cost-effective electric vehicle you need, I will use the customized size customized product motor to add icing on the cake for you! 260 series motors can play out unexpected product effects, high stability and large torque make the overall tram quality even better!

Wheel width dimension: 72mm

Suitable magnet height: 24-50mm

Magnetic steel thickness: 2.5mm

Motor power: 240W-4000W

Peak torque: 100-200N.m

Working voltage: 48V-120V

Peak efficiency: 83-93% (output/input)

Protection class: IP54

Insulation class: B

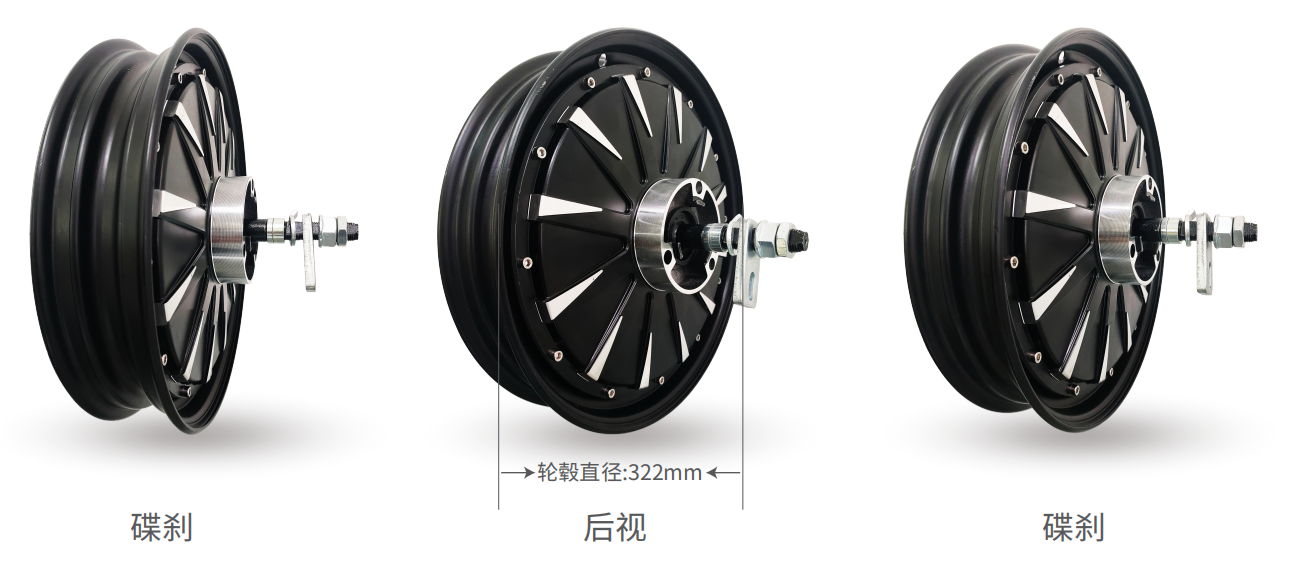

Brake type: disc brake/drum brake

Flat fork opening size: 200-230mm

Speed//Speed: 20-100km/h (speed 270-1450rpm)
